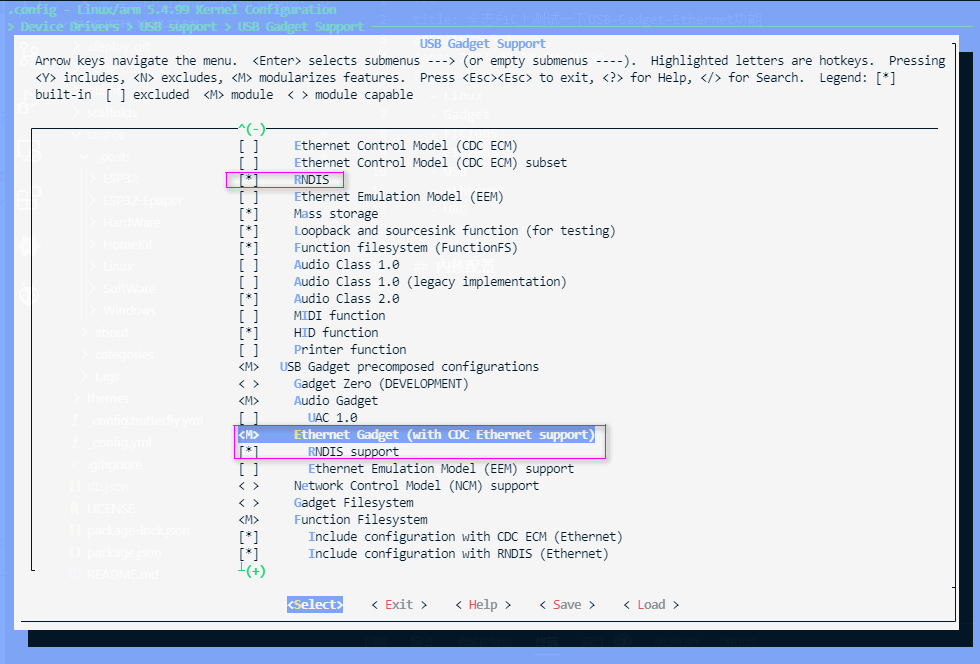

内核配置

驱动加载

  1. 此项功能依赖于 u_ether.ko usb_f_rndis.ko usb_f_fs.ko g_ether.ko，直接使用modprobe g_ether.ko即可
  2. 查看板子输出,会多出一个叫usb0的网卡
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    [ 2734.604498] using random self ethernet address
    [ 2734.609106] using random host ethernet address
    [ 2734.614621] usb0: HOST MAC 06:d6:3f:f1:88:be
    [ 2734.619126] usb0: MAC 82:5a:d5:83:b9:da
    [ 2734.623035] using random self ethernet address
    [ 2734.627555] using random host ethernet address
    [ 2734.632127] g_ether gadget: Ethernet Gadget, version: Memorial Day 2008
    [ 2734.638824] g_ether gadget: g_ether ready
    # [ 2735.352830] g_ether gadget: high-speed config #2: RNDIS
    ifconfig -a
    lo        Link encap:Local Loopback
              inet addr:127.0.0.1  Mask:255.0.0.0
              UP LOOPBACK RUNNING  MTU:65536  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    usb0      Link encap:Ethernet  HWaddr 82:5A:D5:83:B9:DA
              BROADCAST MULTICAST  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    wlan0     Link encap:Ethernet  HWaddr AC:35:EE:BD:12:FF
              inet addr:192.168.43.136  Bcast:192.168.43.255  Mask:255.255.255.0
              UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
              RX packets:1162 errors:0 dropped:366 overruns:0 frame:0
              TX packets:148 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:336477 (328.5 KiB)  TX bytes:19524 (19.0 KiB)

    wlan1     Link encap:Ethernet  HWaddr AE:35:EE:BD:12:FF
              BROADCAST MULTICAST  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:760 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

脚本加载驱动

  1. 除了上边加载驱动外，还可以通过脚本来开机加载
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    #!/bin/sh
    #
    # Start RNDIS....
    #

    start() {
        printf "Starting RNDIS: \n"
    	mount none /sys/kernel/config -t configfs
        modprobe libcomposite.ko
    	modprobe u_ether.ko
    	modprobe usb_f_rndis.ko
    	sleep 1
    	cd /sys/kernel/config/usb_gadget/
    	mkdir g1
    	cd g1
    	echo "0x0502" > idVendor
    	echo "0x3235" > idProduct
    	mkdir functions/rndis.rn0
    	mkdir configs/c1.1
    	ln -s functions/rndis.rn0/ configs/c1.1/
        sleep 1
        ls /sys/class/udc/ > /sys/kernel/config/usb_gadget/g1/UDC
        [ $? = 0 ] && echo "OK" || echo "FAIL"
    }

    stop() {
        printf "Stopping RNDIS: \n"
        echo > /sys/kernel/config/usb_gadget/g1/UDC
        [ $? = 0 ] && echo "OK" || echo "FAIL"
    }

    case "$1" in
        start)
        start
        ;;
        stop)
        stop
        ;;
        restart|reload)
        stop
        sleep 1
        start
        ;;
      *)
        echo "Usage: $0 {start|stop|restart}"
        exit 1
    esac

    exit $?

  2. 将文件保存到/etc/init.d/S97rndis这里即可开机加载驱动，效果是一样的

配置网卡

  1. 板子上执行

#ifconfig usb0 192.168.8.190 netmask 255.255.255.0
2. Linux电脑此时也会多出一个类似这个名称enp0s20f0u4的网卡

1
sudo ifconfig enp0s20f0u4 192.168.8.195 netmask 255.255.255.0
  1. 板子上ping一下是否畅通，这里的ip可以随便配置，我只是为了挂载NFS目录
  2. mount -t nfs -o nolock 192.168.8.195:/home/xfdr/nfs /mnt
  3. 这样就实现了通过USB来挂载NFS文件夹了，这样做比WIFI速度快不少，使用非常方便

注意：在win10上（build 1909）会被识别为串口，需要使用另外的驱动才能成功识别
kindle_rndis_inf_amd64-v1_0_0_1.zip
rndis.cab
